BOOTSECT
- 功能描述
- 加载bootsect（1个扇区，512字节）至0x7c00，然后移动至0x90000
- 加载setup（4个扇区）至0x90200
- 加载内核（240个扇区，120KB）至0x10000
- 读取根设备号(0x0301)至0x901fc，实际是写死在代码中了，可以根据硬件情况做配置
- 跳转至setup执行
- 执行步骤
- 加载bootsect
- 将bootsect（1个扇区，512字节）从0x7c00移动至0x90000（rep movsw）
- 跳转过去继续执行（ljmp $INITSEG, $go）
- 重新设置段寄存器0x9000
- 设置栈空间（mov $0xFF00, %sp），所以栈顶位于0x9FF00，远大于bootsect(1个扇区) + setup(4个扇区)
- 加载setup（4个扇区）至0x90200（int 0x13），这里0x200 = 512
- 加载内核
- 获取磁盘参数。获取每条磁道的扇区数（int 0x13），存储在sectors变量里
- 打印消息（int 0x10）
- 加载内核（240个扇区，120KB）至0x10000（read_it -> read_track -> int 0x13）
- 读取根设备号(0x0301)至0x901fc，实际是写死在代码中了，可以根据硬件情况做配置
- 跳转至setup执行（ljmp $SETUPSEG, $0）

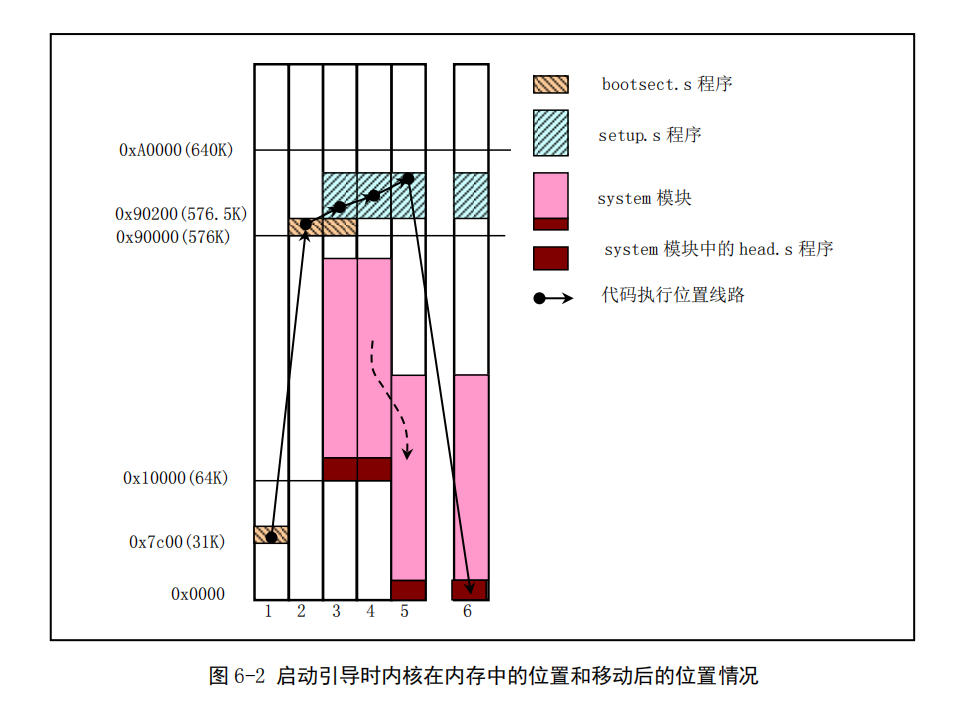

- 启动后内存布局 - 《CLK-5.0》P204
set logging file gdb_output/bootsect.gdb.output
set logging on
set pagination off
set print repeats 0
file boot/bootsect.tmp
target remote :1234
# step0
# bios
#b *0xffff0
# step1
# boot sector
b *0x7c00
# step2
# jmp new pos
b *0x7c18
# step3
# reset seg, stack
b *0x9001d
# step4
# load setup to 0x92000
b *0x90028
# step5
# get nr of sectors/track
b *0x90042
# step6
# print msg
b *0x90055
# step7
# load kernel to 0x10000
b *0x90069
# step8
# get params
b *0x90074
# step9
# jmp to setup
b *0x90098
info b
# step0
info r cs
info r eip
info r ss
info r sp
print "code addr:"
print $cs*16+$eip
print "stack addr:"
print $ss*16+$esp
info r
print "-------------------------------------------------------------------------"
# step1
si
c
info r cs
info r eip
info r ss
info r sp
print "code addr:"
print $cs*16+$eip
print "stack addr:"
print $ss*16+$esp
info r
print "-------------------------------------------------------------------------"
# step2
si
c
info r cs
info r eip
info r ss
info r sp
print "code addr:"
print $cs*16+$eip
print "stack addr:"
print $ss*16+$esp
info r
print "-------------------------------------------------------------------------"
# step3
si
c
info r cs
info r eip
info r ss
info r sp
print "code addr:"
print $cs*16+$eip
print "stack addr:"
print $ss*16+$esp
print "dump binary memory gdb_output/mem.0x7c00-0x7dff.txt 0x7c00 0x7e00"
dump binary memory gdb_output/mem.0x7c00-0x7dff.txt 0x7c00 0x7e00
!touch gdb_output/mem.md5
!md5sum gdb_output/mem.0x7c00-0x7dff.txt >> gdb_output/mem.md5
!md5sum boot/bootsect >> gdb_output/mem.md5
!echo "" >> gdb_output/mem.md5
info r
print "-------------------------------------------------------------------------"
# step4
si
c
info r cs
info r eip
info r ss
info r sp
print "code addr:"
print $cs*16+$eip
print "stack addr:"
print $ss*16+$esp
info r
print "-------------------------------------------------------------------------"
# step5
si
c
info r cs
info r eip
info r ss
info r sp
print "code addr:"
print $cs*16+$eip
print "stack addr:"
print $ss*16+$esp
print "sectors per track:"
x/2xb 0x90142
info r
print "dump binary memory gdb_output/mem.0x90200-0x909ff.txt 0x90200 0x90a00"
dump binary memory gdb_output/mem.0x90200-0x909ff.txt 0x90200 0x90a00
!md5sum gdb_output/mem.0x90200-0x909ff.txt >> gdb_output/mem.md5
!md5sum boot/setup.4sectors.tmp >> gdb_output/mem.md5
!echo "" >> gdb_output/mem.md5
print "-------------------------------------------------------------------------"
# step6
si
c
info r cs
info r eip
info r ss
info r sp
print "code addr:"
print $cs*16+$eip
print "stack addr:"
print $ss*16+$esp
print "sectors per track(0x90142):"
x/2xb 0x90142
info r
print "-------------------------------------------------------------------------"
# step7
si
c
info r cs
info r eip
info r ss
info r sp
print "code addr:"
print $cs*16+$eip
print "stack addr:"
print $ss*16+$esp
info r
print "-------------------------------------------------------------------------"
# step8
si
c
info r cs
info r eip
info r ss
info r sp
print "code addr:"
print $cs*16+$eip
print "stack addr:"
print $ss*16+$esp
print "root_dev(0x901fc):"
x/2xb 0x901fc
info r
print "dump binary memory gdb_output/mem.0x10000-0x36b20.txt 0x10000 0x36b21"
dump binary memory gdb_output/mem.0x10000-0x36b20.txt 0x10000 0x36b21
!md5sum gdb_output/mem.0x10000-0x36b20.txt >> gdb_output/mem.md5
!md5sum tools/kernel >> gdb_output/mem.md5
print "-------------------------------------------------------------------------"
# step9
si
c
info r cs
info r eip
info r ss
info r sp
print "code addr:"
print $cs*16+$eip
print "stack addr:"
print $ss*16+$esp
info r
print "-------------------------------------------------------------------------"
# step10 jmp into setup
si
info r cs
info r eip
info r ss
info r sp
print "code addr:"
print $cs*16+$eip
print "stack addr:"
print $ss*16+$esp
info r
print "-------------------------------------------------------------------------"
set logging off
a727fe650deac34353c06d4f3d2eb0b9 gdb_output/mem.0x7c00-0x7dff.txt
a727fe650deac34353c06d4f3d2eb0b9 boot/bootsect
7f9f516a46aa43095f927086b7acb31e gdb_output/mem.0x90200-0x909ff.txt
7f9f516a46aa43095f927086b7acb31e boot/setup.4sectors.tmp
00fa222e75fbe4f04289dbb8f06ab3a9 gdb_output/mem.0x10000-0x36b20.txt
00fa222e75fbe4f04289dbb8f06ab3a9 tools/kernel
0x0000fff0 in ?? ()
Breakpoint 1 at 0x7c00
Breakpoint 2 at 0x7c18
Breakpoint 3 at 0x9001d
Breakpoint 4 at 0x90028
Breakpoint 5 at 0x90042
Breakpoint 6 at 0x90055
Breakpoint 7 at 0x90069
Breakpoint 8 at 0x90074
Breakpoint 9 at 0x90098
Num Type Disp Enb Address What
1 breakpoint keep y 0x00007c00
2 breakpoint keep y 0x00007c18
3 breakpoint keep y 0x0009001d
4 breakpoint keep y 0x00090028
5 breakpoint keep y 0x00090042
6 breakpoint keep y 0x00090055
7 breakpoint keep y 0x00090069
8 breakpoint keep y 0x00090074
9 breakpoint keep y 0x00090098
cs 0xf000 61440
eip 0xfff0 0xfff0
ss 0x0 0
sp 0x0 0x0 <begtext>
$1 = "code addr:"
$2 = (void (*)()) 0xffff0
$3 = "stack addr:"
$4 = (void *) 0x0 <begtext>
eax 0x0 0
ecx 0x0 0
edx 0x663 1635
ebx 0x0 0
esp 0x0 0x0 <begtext>
ebp 0x0 0x0 <begtext>
esi 0x0 0
edi 0x0 0
eip 0xfff0 0xfff0
eflags 0x2 [ IOPL=0 ]
cs 0xf000 61440
ss 0x0 0
ds 0x0 0
es 0x0 0
fs 0x0 0
gs 0x0 0
fs_base 0x0 0
gs_base 0x0 0
k_gs_base 0x0 0
cr0 0x60000010 [ CD NW ET ]
cr2 0x0 0
cr3 0x0 [ PDBR=0 PCID=0 ]
cr4 0x0 [ ]
cr8 0x0 0
efer 0x0 [ ]
xmm0 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm1 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm2 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm3 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm4 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm5 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm6 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm7 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x80, 0x1f, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x1f80, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x1f80}, v2_int64 = {0x0, 0x1f8000000000}, uint128 = 0x1f80000000000000000000000000}
mxcsr 0x1f80 [ IM DM ZM OM UM PM ]
$5 = "-------------------------------------------------------------------------"
0x0000e05b in ?? ()
Breakpoint 1, 0x00007c00 in ?? ()
cs 0x0 0
eip 0x7c00 0x7c00
ss 0x0 0
sp 0x6f00 0x6f00
$6 = "code addr:"
$7 = (void (*)()) 0x7c00
$8 = "stack addr:"
$9 = (void *) 0x6f00
eax 0xaa55 43605
ecx 0x0 0
edx 0x0 0
ebx 0x0 0
esp 0x6f00 0x6f00
ebp 0x0 0x0 <begtext>
esi 0x0 0
edi 0x0 0
eip 0x7c00 0x7c00
eflags 0x202 [ IOPL=0 IF ]
cs 0x0 0
ss 0x0 0
ds 0x0 0
es 0x0 0
fs 0x0 0
gs 0x0 0
fs_base 0x0 0
gs_base 0x0 0
k_gs_base 0x0 0
cr0 0x10 [ ET ]
cr2 0x0 0
cr3 0x0 [ PDBR=0 PCID=0 ]
cr4 0x0 [ ]
cr8 0x0 0
efer 0x0 [ ]
xmm0 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm1 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm2 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm3 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm4 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm5 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm6 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm7 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x80, 0x1f, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x1f80, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x1f80}, v2_int64 = {0x0, 0x1f8000000000}, uint128 = 0x1f80000000000000000000000000}
mxcsr 0x1f80 [ IM DM ZM OM UM PM ]
$10 = "-------------------------------------------------------------------------"
57 mov $BOOTSEG, %ax #将ds段寄存器设置为0x7C0
Program received signal SIGTRAP, Trace/breakpoint trap.
_start () at bootsect.s:71
71 ljmp $INITSEG, $go #段间跳转，这里INITSEG指出跳转到的段地址，解释了cs的值为0x9000
cs 0x7c0 1984
eip 0x18 0x18 <_start+19>
ss 0x0 0
sp 0x6f00 0x6f00
$11 = "code addr:"
$12 = (void (*)()) 0x7c18
$13 = "stack addr:"
$14 = (void *) 0x6f00
eax 0x9000 36864
ecx 0x0 0
edx 0x0 0
ebx 0x0 0
esp 0x6f00 0x6f00
ebp 0x0 0x0 <begtext>
esi 0x200 512
edi 0x200 512
eip 0x18 0x18 <_start+19>
eflags 0x246 [ IOPL=0 IF ZF PF ]
cs 0x7c0 1984
ss 0x0 0
ds 0x7c0 1984
es 0x9000 36864
fs 0x0 0
gs 0x0 0
fs_base 0x0 0
gs_base 0x0 0
k_gs_base 0x0 0
cr0 0x10 [ ET ]
cr2 0x0 0
cr3 0x0 [ PDBR=0 PCID=0 ]
cr4 0x0 [ ]
cr8 0x0 0
efer 0x0 [ ]
xmm0 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm1 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm2 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm3 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm4 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm5 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm6 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm7 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x80, 0x1f, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x1f80, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x1f80}, v2_int64 = {0x0, 0x1f8000000000}, uint128 = 0x1f80000000000000000000000000}
mxcsr 0x1f80 [ IM DM ZM OM UM PM ]
$15 = "-------------------------------------------------------------------------"
78 go: mov %cs, %ax #将ds，es，ss都设置成移动后代码所在的段处(0x9000)
Program received signal SIGTRAP, Trace/breakpoint trap.
go () at bootsect.s:78
78 go: mov %cs, %ax #将ds，es，ss都设置成移动后代码所在的段处(0x9000)
cs 0x9000 36864
eip 0x1d 0x1d <go>
ss 0x0 0
sp 0x6f00 0x6f00
$16 = "code addr:"
$17 = (void (*)()) 0x9001d
$18 = "stack addr:"
$19 = (void *) 0x6f00
$20 = "dump binary memory gdb_output/mem.0x7c00-0x7dff.txt 0x7c00 0x7e00"
eax 0x9000 36864
ecx 0x0 0
edx 0x0 0
ebx 0x0 0
esp 0x6f00 0x6f00
ebp 0x0 0x0 <begtext>
esi 0x200 512
edi 0x200 512
eip 0x1d 0x1d <go>
eflags 0x246 [ IOPL=0 IF ZF PF ]
cs 0x9000 36864
ss 0x0 0
ds 0x7c0 1984
es 0x9000 36864
fs 0x0 0
gs 0x0 0
fs_base 0x0 0
gs_base 0x0 0
k_gs_base 0x0 0
cr0 0x10 [ ET ]
cr2 0x0 0
cr3 0x0 [ PDBR=0 PCID=0 ]
cr4 0x0 [ ]
cr8 0x0 0
efer 0x0 [ ]
xmm0 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm1 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm2 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm3 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm4 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm5 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm6 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm7 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x80, 0x1f, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x1f80, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x1f80}, v2_int64 = {0x0, 0x1f8000000000}, uint128 = 0x1f80000000000000000000000000}
mxcsr 0x1f80 [ IM DM ZM OM UM PM ]
$21 = "-------------------------------------------------------------------------"
79 mov %ax, %ds
Program received signal SIGTRAP, Trace/breakpoint trap.
load_setup () at bootsect.s:100
100 mov $0x0000, %dx # drive 0, head 0
cs 0x9000 36864
eip 0x28 0x28 <load_setup>
ss 0x9000 36864
sp 0xff00 0xff00
$22 = "code addr:"
$23 = (void (*)()) 0x90028
$24 = "stack addr:"
$25 = (void *) 0x9ff00
eax 0x9000 36864
ecx 0x0 0
edx 0x0 0
ebx 0x0 0
esp 0xff00 0xff00
ebp 0x0 0x0 <begtext>
esi 0x200 512
edi 0x200 512
eip 0x28 0x28 <load_setup>
eflags 0x246 [ IOPL=0 IF ZF PF ]
cs 0x9000 36864
ss 0x9000 36864
ds 0x9000 36864
es 0x9000 36864
fs 0x0 0
gs 0x0 0
fs_base 0x0 0
gs_base 0x0 0
k_gs_base 0x0 0
cr0 0x10 [ ET ]
cr2 0x0 0
cr3 0x0 [ PDBR=0 PCID=0 ]
cr4 0x0 [ ]
cr8 0x0 0
efer 0x0 [ ]
xmm0 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm1 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm2 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm3 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm4 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm5 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm6 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm7 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x80, 0x1f, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x1f80, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x1f80}, v2_int64 = {0x0, 0x1f8000000000}, uint128 = 0x1f80000000000000000000000000}
mxcsr 0x1f80 [ IM DM ZM OM UM PM ]
$26 = "-------------------------------------------------------------------------"
101 mov $0x0002, %cx # sector 2, track 0
Program received signal SIGTRAP, Trace/breakpoint trap.
ok_load_setup () at bootsect.s:121
121 mov $0x00, %dl
cs 0x9000 36864
eip 0x42 0x42 <ok_load_setup>
ss 0x9000 36864
sp 0xff00 0xff00
$27 = "code addr:"
$28 = (void (*)()) 0x90042
$29 = "stack addr:"
$30 = (void *) 0x9ff00
$31 = "sectors per track:"
0x90142: 0x00 0x00
eax 0x4 4
ecx 0x2 2
edx 0x0 0
ebx 0x200 512
esp 0xff00 0xff00
ebp 0x0 0x0 <begtext>
esi 0x200 512
edi 0x200 512
eip 0x42 0x42 <ok_load_setup>
eflags 0x246 [ IOPL=0 IF ZF PF ]
cs 0x9000 36864
ss 0x9000 36864
ds 0x9000 36864
es 0x9000 36864
fs 0x0 0
gs 0x0 0
fs_base 0x0 0
gs_base 0x0 0
k_gs_base 0x0 0
cr0 0x10 [ ET ]
cr2 0x0 0
cr3 0x0 [ PDBR=0 PCID=0 ]
cr4 0x0 [ ]
cr8 0x0 0
efer 0x0 [ ]
xmm0 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm1 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm2 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm3 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm4 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm5 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm6 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm7 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x80, 0x1f, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x1f80, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x1f80}, v2_int64 = {0x0, 0x1f8000000000}, uint128 = 0x1f80000000000000000000000000}
mxcsr 0x1f80 [ IM DM ZM OM UM PM ]
$32 = "dump binary memory gdb_output/mem.0x90200-0x909ff.txt 0x90200 0x90a00"
$33 = "-------------------------------------------------------------------------"
122 mov $0x0800, %ax # AH=8 is get drive parameters
Program received signal SIGTRAP, Trace/breakpoint trap.
ok_load_setup () at bootsect.s:137
137 mov $0x03, %ah # read cursor pos
cs 0x9000 36864
eip 0x55 0x55 <ok_load_setup+19>
ss 0x9000 36864
sp 0xff00 0xff00
$34 = "code addr:"
$35 = (void (*)()) 0x90055
$36 = "stack addr:"
$37 = (void *) 0x9ff00
$38 = "sectors per track(0x90142):"
0x90142: 0x24 0x00
eax 0x9000 36864
ecx 0x24 36
edx 0x101 257
ebx 0x5 5
esp 0xff00 0xff00
ebp 0x0 0x0 <begtext>
esi 0x200 512
edi 0x611c 24860
eip 0x55 0x55 <ok_load_setup+19>
eflags 0x246 [ IOPL=0 IF ZF PF ]
cs 0x9000 36864
ss 0x9000 36864
ds 0x9000 36864
es 0x9000 36864
fs 0x0 0
gs 0x0 0
fs_base 0x0 0
gs_base 0x0 0
k_gs_base 0x0 0
cr0 0x10 [ ET ]
cr2 0x0 0
cr3 0x0 [ PDBR=0 PCID=0 ]
cr4 0x0 [ ]
cr8 0x0 0
efer 0x0 [ ]
xmm0 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm1 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm2 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm3 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm4 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm5 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm6 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm7 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x80, 0x1f, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x1f80, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x1f80}, v2_int64 = {0x0, 0x1f8000000000}, uint128 = 0x1f80000000000000000000000000}
mxcsr 0x1f80 [ IM DM ZM OM UM PM ]
$39 = "-------------------------------------------------------------------------"
138 xor %bh, %bh
Program received signal SIGTRAP, Trace/breakpoint trap.
ok_load_setup () at bootsect.s:156
156 mov $SYSSEG, %ax
cs 0x9000 36864
eip 0x69 0x69 <ok_load_setup+39>
ss 0x9000 36864
sp 0xff00 0xff00
$40 = "code addr:"
$41 = (void (*)()) 0x90069
$42 = "stack addr:"
$43 = (void *) 0x9ff00
eax 0x1301 4865
ecx 0x1e 30
edx 0x800 2048
ebx 0x7 7
esp 0xff00 0xff00
ebp 0x144 0x144 <msg1>
esi 0x200 512
edi 0x611c 24860
eip 0x69 0x69 <ok_load_setup+39>
eflags 0x246 [ IOPL=0 IF ZF PF ]
cs 0x9000 36864
ss 0x9000 36864
ds 0x9000 36864
es 0x9000 36864
fs 0x0 0
gs 0x0 0
fs_base 0x0 0
gs_base 0x0 0
k_gs_base 0x0 0
cr0 0x10 [ ET ]
cr2 0x0 0
cr3 0x0 [ PDBR=0 PCID=0 ]
cr4 0x0 [ ]
cr8 0x0 0
efer 0x0 [ ]
xmm0 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm1 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm2 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm3 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm4 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm5 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm6 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm7 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x80, 0x1f, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x1f80, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x1f80}, v2_int64 = {0x0, 0x1f8000000000}, uint128 = 0x1f80000000000000000000000000}
mxcsr 0x1f80 [ IM DM ZM OM UM PM ]
$44 = "-------------------------------------------------------------------------"
157 mov %ax, %es # segment of 0x010000
Program received signal SIGTRAP, Trace/breakpoint trap.
ok_load_setup () at bootsect.s:172
172 mov %cs:root_dev+0, %ax
cs 0x9000 36864
eip 0x74 0x74 <ok_load_setup+50>
ss 0x9000 36864
sp 0xff00 0xff00
$45 = "code addr:"
$46 = (void (*)()) 0x90074
$47 = "stack addr:"
$48 = (void *) 0x9ff00
$49 = "root_dev(0x901fc):"
0x901fc: 0x01 0x03
eax 0x4000 16384
ecx 0x3a00 14848
edx 0x800 2048
ebx 0x0 0
esp 0xff00 0xff00
ebp 0x144 0x144 <msg1>
esi 0x201 513
edi 0x611c 24860
eip 0x74 0x74 <ok_load_setup+50>
eflags 0x246 [ IOPL=0 IF ZF PF ]
cs 0x9000 36864
ss 0x9000 36864
ds 0x9000 36864
es 0x4000 16384
fs 0x0 0
gs 0x0 0
fs_base 0x0 0
gs_base 0x0 0
k_gs_base 0x0 0
cr0 0x10 [ ET ]
cr2 0x0 0
cr3 0x0 [ PDBR=0 PCID=0 ]
cr4 0x0 [ ]
cr8 0x0 0
efer 0x0 [ ]
xmm0 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm1 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm2 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm3 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm4 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm5 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm6 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm7 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x80, 0x1f, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x1f80, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x1f80}, v2_int64 = {0x0, 0x1f8000000000}, uint128 = 0x1f80000000000000000000000000}
mxcsr 0x1f80 [ IM DM ZM OM UM PM ]
$50 = "dump binary memory gdb_output/mem.0x10000-0x36b20.txt 0x10000 0x36b21"
$51 = "-------------------------------------------------------------------------"
173 cmp $0, %ax
Program received signal SIGTRAP, Trace/breakpoint trap.
root_defined () at bootsect.s:198
198 ljmp $SETUPSEG, $0
cs 0x9000 36864
eip 0x98 0x98 <root_defined+4>
ss 0x9000 36864
sp 0xff00 0xff00
$52 = "code addr:"
$53 = (void (*)()) 0x90098
$54 = "stack addr:"
$55 = (void *) 0x9ff00
eax 0x301 769
ecx 0x3a00 14848
edx 0x800 2048
ebx 0x0 0
esp 0xff00 0xff00
ebp 0x144 0x144 <msg1>
esi 0x201 513
edi 0x611c 24860
eip 0x98 0x98 <root_defined+4>
eflags 0x202 [ IOPL=0 IF ]
cs 0x9000 36864
ss 0x9000 36864
ds 0x9000 36864
es 0x4000 16384
fs 0x0 0
gs 0x0 0
fs_base 0x0 0
gs_base 0x0 0
k_gs_base 0x0 0
cr0 0x10 [ ET ]
cr2 0x0 0
cr3 0x0 [ PDBR=0 PCID=0 ]
cr4 0x0 [ ]
cr8 0x0 0
efer 0x0 [ ]
xmm0 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm1 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm2 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm3 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm4 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm5 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm6 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm7 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x80, 0x1f, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x1f80, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x1f80}, v2_int64 = {0x0, 0x1f8000000000}, uint128 = 0x1f80000000000000000000000000}
mxcsr 0x1f80 [ IM DM ZM OM UM PM ]
$56 = "-------------------------------------------------------------------------"
begtext () at bootsect.s:55
55 ljmp $BOOTSEG, $_start
cs 0x9020 36896
eip 0x0 0x0 <begtext>
ss 0x9000 36864
sp 0xff00 0xff00
$57 = "code addr:"
$58 = (void (*)()) 0x90200
$59 = "stack addr:"
$60 = (void *) 0x9ff00
eax 0x301 769
ecx 0x3a00 14848
edx 0x800 2048
ebx 0x0 0
esp 0xff00 0xff00
ebp 0x144 0x144 <msg1>
esi 0x201 513
edi 0x611c 24860
eip 0x0 0x0 <begtext>
eflags 0x202 [ IOPL=0 IF ]
cs 0x9020 36896
ss 0x9000 36864
ds 0x9000 36864
es 0x4000 16384
fs 0x0 0
gs 0x0 0
fs_base 0x0 0
gs_base 0x0 0
k_gs_base 0x0 0
cr0 0x10 [ ET ]
cr2 0x0 0
cr3 0x0 [ PDBR=0 PCID=0 ]
cr4 0x0 [ ]
cr8 0x0 0
efer 0x0 [ ]
xmm0 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm1 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm2 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm3 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm4 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm5 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm6 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x0}, v2_int64 = {0x0, 0x0}, uint128 = 0x0}
xmm7 {v4_float = {0x0, 0x0, 0x0, 0x0}, v2_double = {0x0, 0x0}, v16_int8 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x80, 0x1f, 0x0, 0x0}, v8_int16 = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x1f80, 0x0}, v4_int32 = {0x0, 0x0, 0x0, 0x1f80}, v2_int64 = {0x0, 0x1f8000000000}, uint128 = 0x1f80000000000000000000000000}
mxcsr 0x1f80 [ IM DM ZM OM UM PM ]
$61 = "-------------------------------------------------------------------------"
